Manylion Cynnyrch

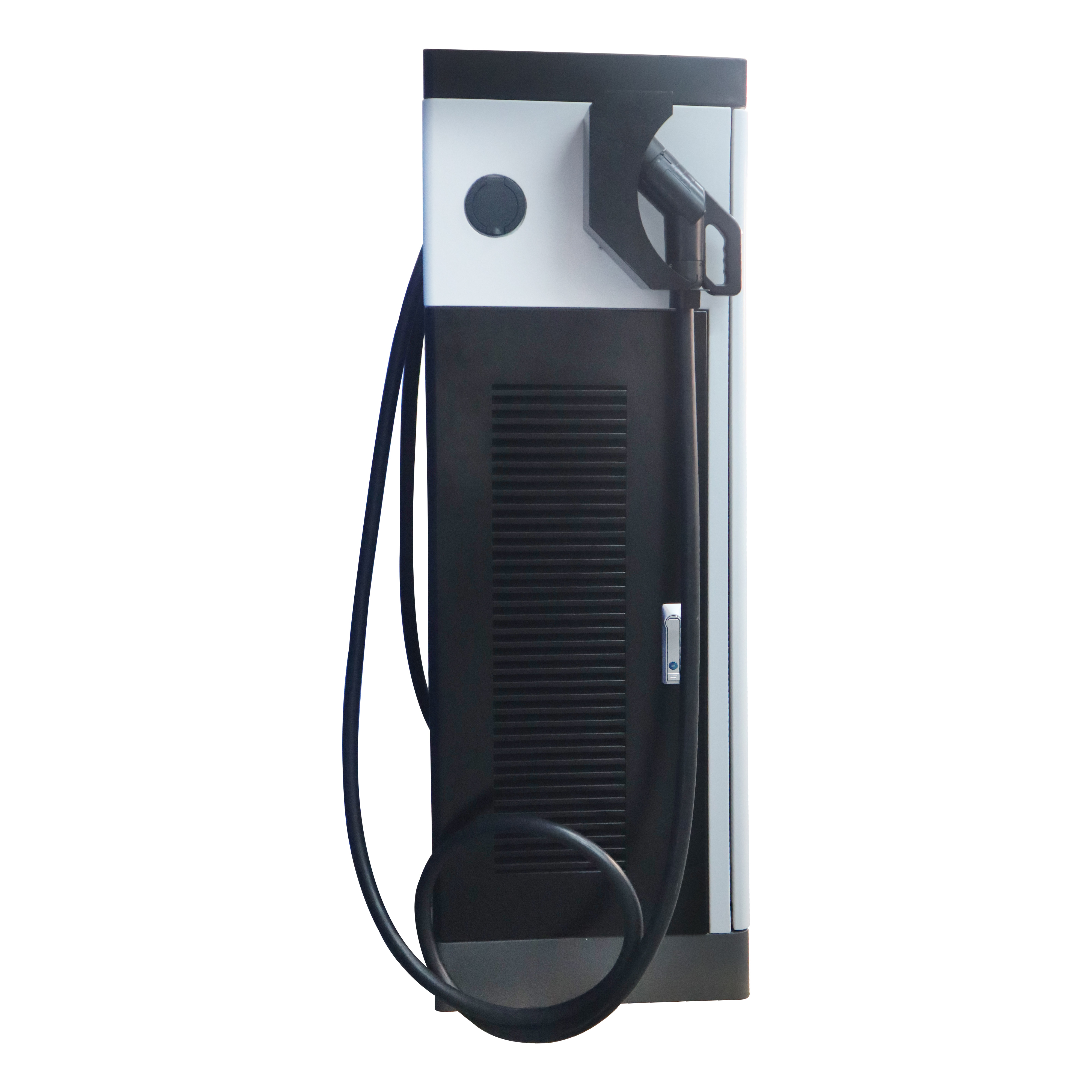

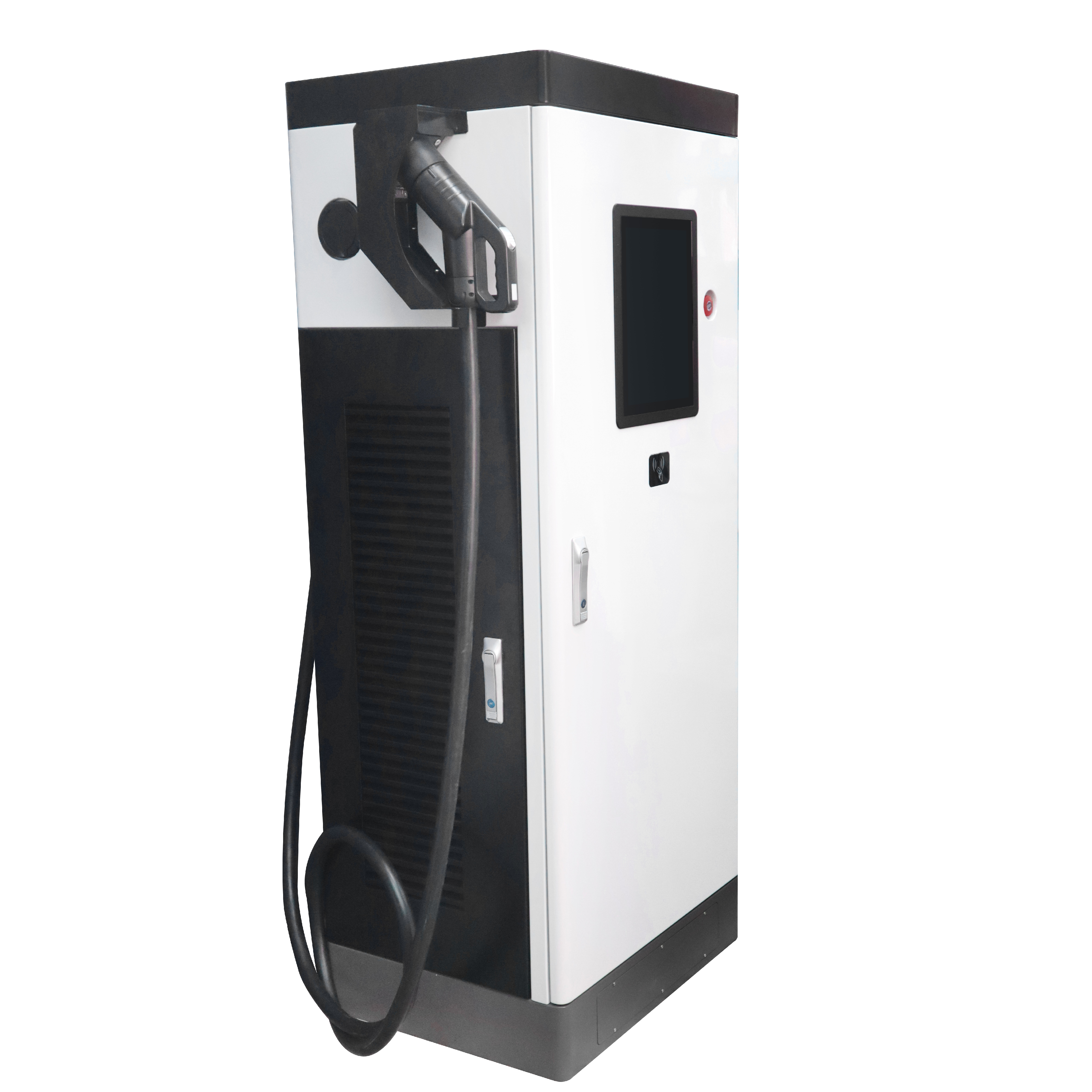

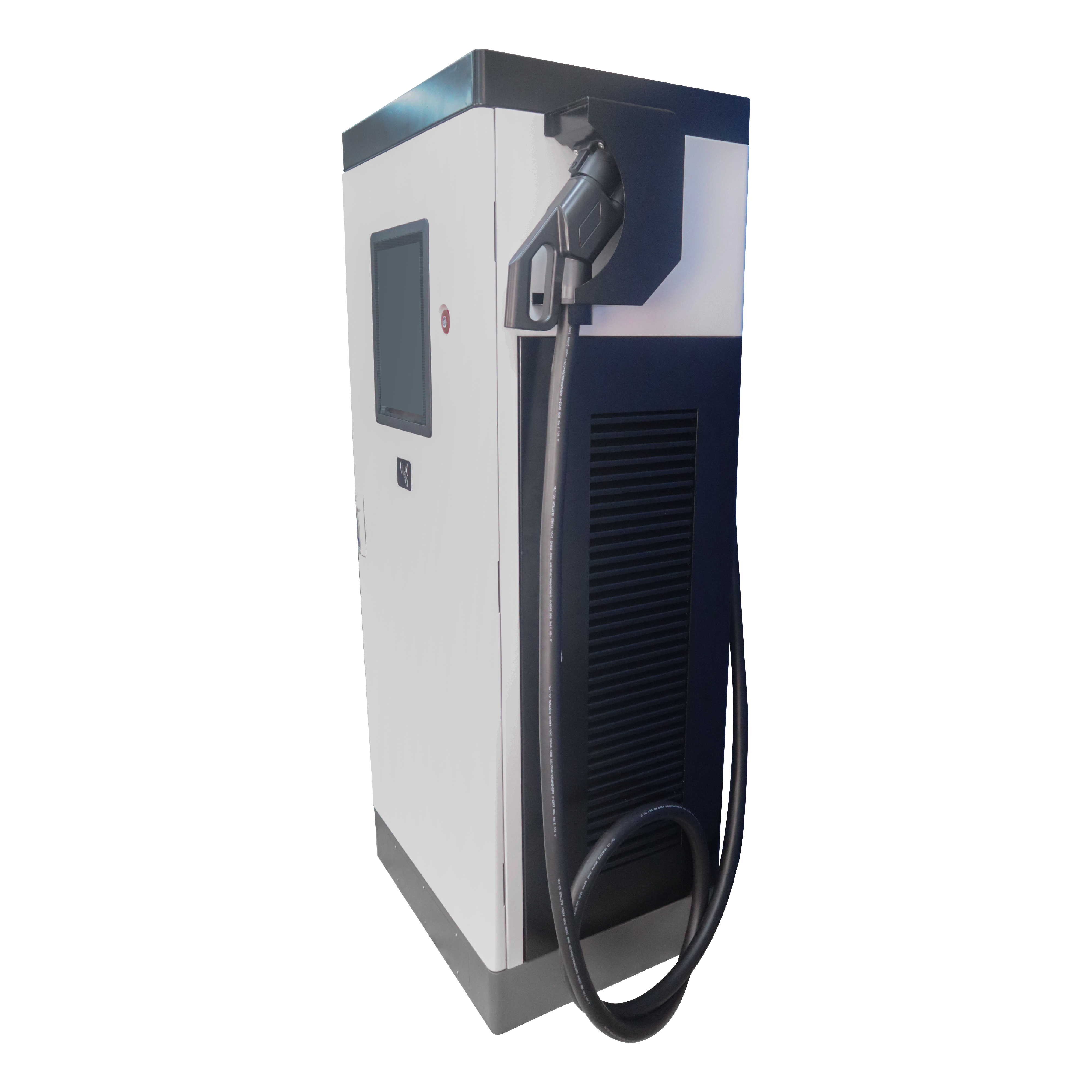

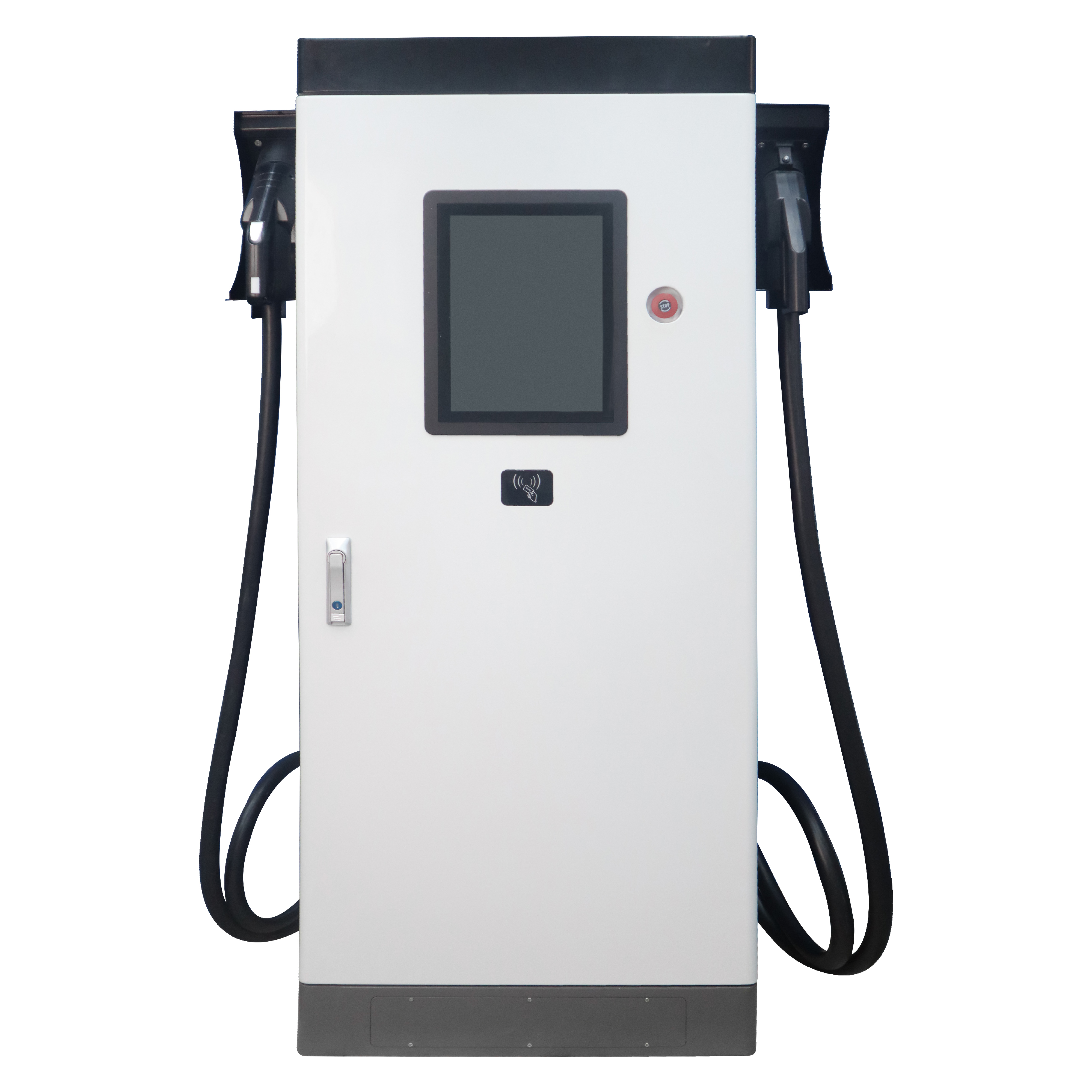

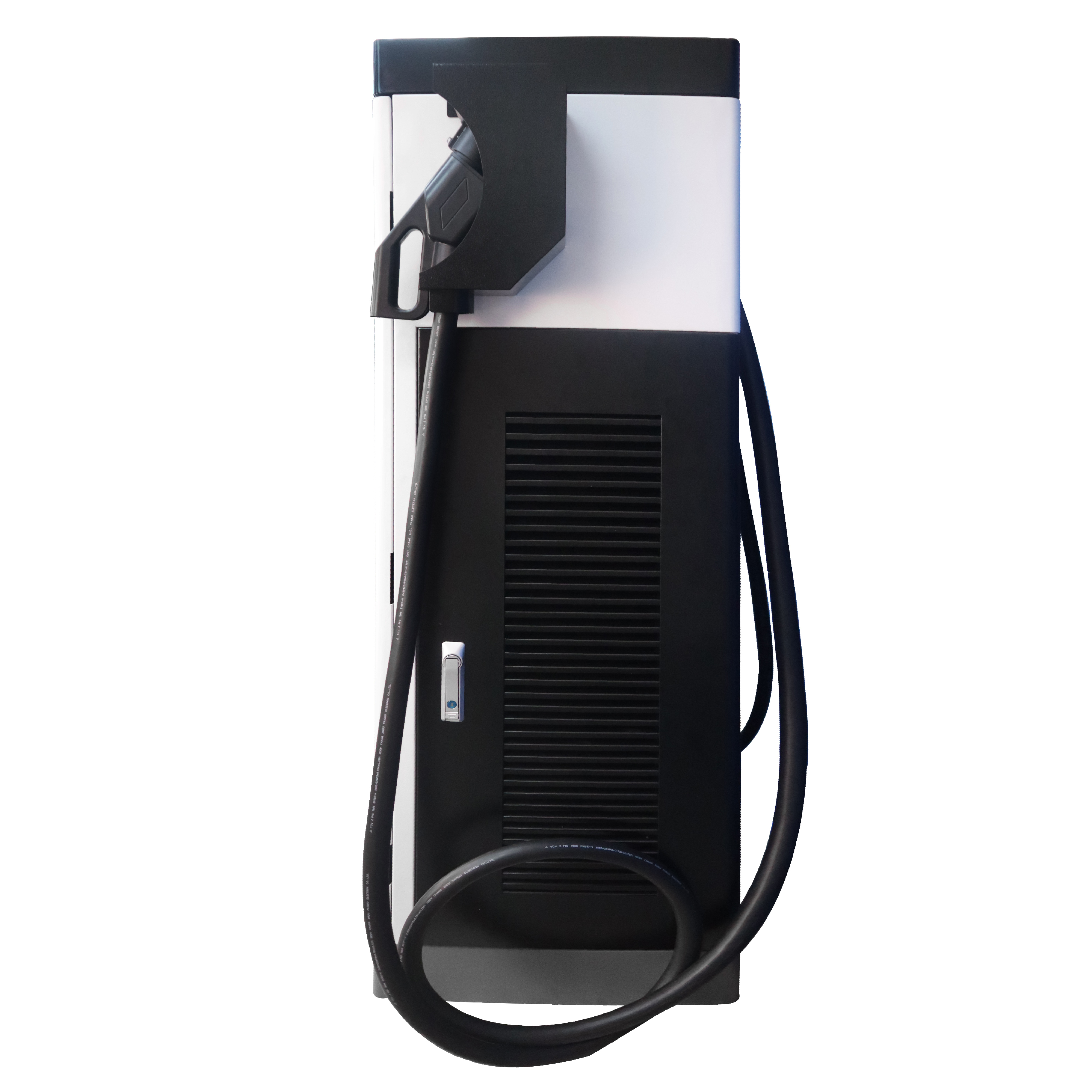

Fast charging station is one type of charging method which can charge battery of electric vehicle (EV) in not over an hour. It can supply rapidly electric power to charge EV like gasoline pump station for internal combustion engine car. The 60kw DC Fast Charger has three charging ports CCS, CHAdeMO and AC are equipped to provide users with multiple charging options. The charger is for indoor/outdoor placement. The appearance of the charger is beautiful. It supports credit card, APP and other payment methods, and can be started and stopped remotely. It is suitable for charging electric vehicles in charging stations and bustling areas. The charger's protocol and man-machine function must meet the relevant requirements of IEC standards IEC 61851-1 and IEC 62196-24.1
| Technical data | ELECTWAY | ||
| AC Input | |||
| Input Rating | 380/480 ± 15 % | ||
| AC Input Connection | 3 phases + neutral + AR | ||
| Max.Input Power | 43KVA | ||
| Amledd | 50/60Hz | ||
| Efficiency | > 95 % at nominal output power | ||
| Power factor | 0.99(APFC) | ||
| DC Output | |||
| foltedd | 50~500Vdc(CHAdeMO), 150~750Vdc(CCS) 48~120Vdc(GB/T) |
||
| Max.output Current | 150A@400V,120A@500V,80A@750V,1000V optional | ||
| Max.Output Power | 60KW | ||
| Voltage Accuracy | ± 1 % | ||
| Current Accuracy | ± 1 % | ||
| Human User Interface | |||
| User Authentication | RFID | Humidity | 5 % to 95 % |
| Outline | L640×W540×H1600mm | Tymheredd Gweithredu | -25 ºC to +50 ºc |
| Emergency stop Control | Press emergency stop button isolation between input and output. Manual release switch | ||
| Display | 7' or 10' T FT-LCD touchable screen(Antoird or Win CE), 15' optional | ||
| Display Information | Charging process and status/Alarm and warning message | ||
| Communiation | |||
| External | 3/4G.,WiFi and Ethernet | Altitude | Up to 1000 m |
| Internal | CANBus/RS485/RS232 | Sound noise | <55 dB in all directions |
| Electrical Isolation | Isolation between input and output | Cooling | Forced Air |
| Protocol and standard | CHAdeMO 2.0 / DIN 70121/ISO15118/IEC61851-23JEC61851-24 | ||
| Input Protection | Pecynnu gwreiddiol,OCP,OPP,OTP,UVP,residual current detection,surge protect cabinet-open detection(rear door) | ||
| Output Protection | short circuit protection,OCP,Pecynnu gwreiddiol,LVP,OTP,residual current detection | ||
| Noise | <55dB | Protection | IP54/IK10 |
| Net weight | 200 kg | Warranty | 24 misoedd |
Product advantages
✔ Multiple output - CCS1 or 2,CHAdeMO,GB/T,AC type1 or 2
✔ Fast-charge any CCS,CHAdeMO,GB/T vehicle
✔ 0 to 80% in less than 0.5 awr
✔ Safe and intuitive to use
✔ Stationary IK10, IP54
✔ Emergency stop button
✔ Optional network integration (OCPP 1.6 JSON)
✔ Optional built-in communications (4G.; LAN; Wi-Fi)
✔ Optional RFID reader
✔ 7 inch touch display
Application scenarios
• EV fleets(private and public)
• EV dealers and service providers
• Employee parking lots
• Car-Share,Taxi and Rent-a-Car fleets
• Shopping Centers
• Private EV Infrastructure and operators
Emergency Shutdown Function
An emergency disconnect device should be installed to isolate the charging rack from the AC grid to prevent electric shock, fire or explosion. Disconnect the device should have a certain protection device to prevent accidental disconnection. The emergency stop button set on the charging pile should control the AC input switch and DC output side contactor of the charger at the same time.
Ein Gwasanaeth
| 1) Amser gwarant: 12 misoedd. |
| 2) Gwasanaeth cyn gwerthu: cynghorion proffesiynol ar gyfer dewis set generadur, cyfluniadau, gosod, swm buddsoddiad ac ati i'ch helpu chi i ddod o hyd i'r hyn rydych chi ei eisiau. Dim ots prynu oddi wrthym ai peidio. |
| 3) Prynu sicrwydd masnach: gwneud y fargen ddiogel trwy Alibaba, dim ots arian, ansawdd neu wasanaeth, mae'r cyfan wedi'i warantu! |
| 4) Gwasanaeth cynhyrchu: cadwch olwg ar gynnydd y cynhyrchu, byddwch chi'n gwybod sut maen nhw'n cael eu cynhyrchu. |
| 5) Gwasanaeth ar ôl gwerthu: cyfarwyddiadau am ddim ar gyfer gosod, saethu trafferthion ac ati. Mae rhannau am ddim ar gael o fewn amser gwarant. |
| 6) Cefnogi dyluniad wedi'i addasu, samplu a phacio yn unol â gofynion cleientiaid. |
pacio
Ardystiadau
Ein cwmni
Cwestiynau Cyffredin
| C1: Ydych chi'n wneuthurwr neu'n gwmni masnachu? |
| A.: Rydym yn wneuthurwr |
| . |
| C2: Ble mae'ch ffatri? A gaf i ymweld ag ef? |
| A.:Mae ein ffatri wedi'i lleoli yn ninas Guangzhou, Talaith Guangdong,China. |
| Ein holl gleientiaid,o gartref neu dramor,mae croeso cynnes i ymweld â ni. |
| . |
| C3: Beth yw'r telerau talu? |
| A.:Rydym yn derbyn T / T.,L / C.,Undeb gorllewinol,MoneyGram ac ati. |
| C4: Beth yw'r ffordd cludo? |
| A.: Ar y môr,mewn aer neu drwy fynegi. Yn ôl gofynion cleientiaid. |
| . |
| C5: Beth am eich amser dosbarthu? |
| A.: Yn gyffredinol, bydd yn cymryd 7-14 dyddiau. Mae'r amser dosbarthu penodol yn dibynnu ar yr eitemau a maint eich archeb. |
| . |
| C6: Beth am eich gwasanaeth ar ôl gwerthu. |
| A.: Byddwn yn unol â'r safonau ansawdd rhyngwladol i archwilio pob cynnyrch cyn eu danfon. |
| . |
| C7: Allwch chi ddarparu samplau? |
| A.: Ydw,gallwn ddarparu samplau. Bydd y prynwr yn codi'r ffi sampl a'r gost cludo. |
| . |
| C8: Allwch chi wneud cynhyrchion wedi'u haddasu a phacio wedi'i addasu? |
| A.: Ydw, gellir addasu pob cynnyrch yn unol â gofynion y cwsmer. Ynglŷn â phacio arferiad, gallwn roi logo neu wybodaeth arall ar y blwch pacio. |
| . |
| C9: A allaf i fod yn Asiant / Deliwr eich cynhyrchion? |
| A.: Croeso! Ond rhowch wybod i mi eich Gwlad / Ardal yn gyntaf, Byddwn yn cael gwiriad ac yna'n siarad am hyn. Os ydych chi eisiau unrhyw fath arall o gydweithrediad. Peidiwch ag oedi cyn cysylltu â ni. |
