Product Details

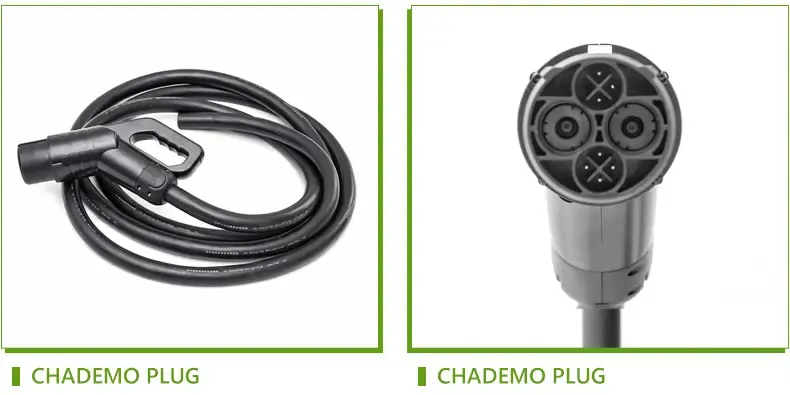

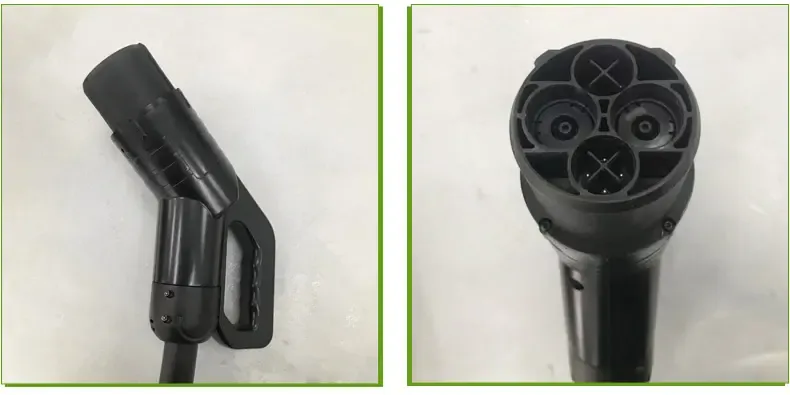

The DC charger Coupler Connector facilitates connection of a DC power source to plug-in electric vehicle for rapid charging applications. CHAdeMO Plug is widely applied to trickle charge of electric vehicle, electric minibus,electric bus and chargeable hybrid power vehicles etc.
Oulet side | |
Plug type | CHAdeMo 1.0 |
Voltage | 1000VDC |
Pin number | 10 pin |
Cable specs | 16-50mm²*2+14*0.5mm² |
Ambient | -30-40°C |
Charger side | |
Plug type | high load connector |
Output,Current | 80A*4+16*8 |
Pin | 4*DC pin+14*signal pin |
Cable diameter | 23-45mm |
Housing | IP67 |
Insulation resistance | 100mΩ or more(500V DC) |
Solenoid | Coil resistance value 38Ω+10% |
Withstand voltage | 3,000V AC applied for 1 min |
Weight | 10KG(5m cable) |
Product advantages
✔ JEVSG 105 compliant
✔ Protection class: IP67(in mated conditions)
✔ Certification: CE/IEC/ROHS
✔ Nice shape, hand-held ergonomic design, easy to use;
✔ Reliability of materials, anti flaming, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.
Application scenarios
Our Service
1) Warranty time: 12 months. |
2) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want. No matter buy from us or not. |
3) Trade-assurance purchase: make the safe deal through Alibaba, no matter money, quality or service, all is guaranteed! |
4) Production service: keep tracking for the progress of production, you will know how they are produced. |
5) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time. |
6) Support customized design, sample and packing according to clients requirements. |
packing
Certifications
Our COMPANY
FAQ
Q1: Are you a manufacturer or trading company? |
A: We are a manufacturer |
. |
Q2: Where is your factory located? Can I visit it? |
A:Our factory is located in Guangzhou city, Guangdong Province,उच्च दर्जाचे 40kw वॉल माउंट केलेले फास्ट चार्जर. |
All our clients,from home or abroad,are warmly welcome to visit us. |
. |
Q3: What’s the payment terms? |
A:We accept T/T,L/C,Western Union,MoneyGram and so on. |
Q4: What’s the transportation way? |
A: By sea,by air or by express. According to clients requirements. |
. |
Q5: How about your delivery time? |
A: Generally, it will takes 7-14 days. The specific delivery time depends on the items and the quantity of your order. |
. |
Q6: What about your after sale service. |
A: We will according to the international quality standards to inspect every products before delivery. |
. |
Q7: Can you provide samples? |
A: Yes,we can provide samples.The sample fee and the shipping cost will be charged by the buyers. |
. |
Q8: Can you make customized products and customized packing? |
A: Yes, all products can customized according to customer requirements. About custom packing, we can put logo or other info on the packing box. |
. |
Q9: Can I be an Agent/Dealer of your products? |
A: Welcome! But please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation. Please don’t hesitate to contact us. |
